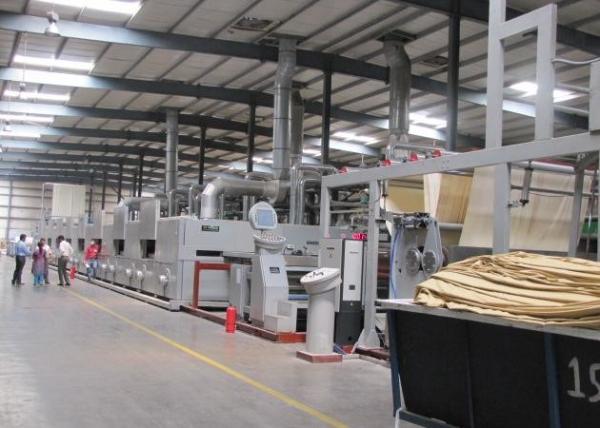

    Horizontal Rail Stenter Finishing Machine Energy Saving 400mm Padder Roller Dia

    High - efficiency Stenter Finishing Machine , good thermal insulation , energy saving


    1. Machine applications:

    Due to our enormous understanding and massive knowledge of stenter woking process, we involved in the manufacturing of Stenter Machine. The machine or apparatus is used for stretching or stentering fabrics. The purpose of this machine is to bringing the length and width to predetermined dimensions and also for heat setting and it is used for applying finishing chemicals and also shade variation is adjusted. The main function of the stenter is to stretch the fabric widthwise and to recover the uniform width. This machine also has the capacity to controls the Shrinkage property of the fabric in an efficient manner.

    2. Main technical data:


    Fabric width1200mm-3600mm
    Roller width1400mm-3800mm
    Padder mangleFinishing/Dyeing paddle
    Padder roller quantityTwo, Three
    Padder roller dia400mm
    Chamber quantity2-15 pcs
    Guide roller diameter125mm/150mm
    Heating mediaThermal oil/Natural gas/Steam/Electricity or any two combined
    Pinning motor0.75 Kw
    Blower motor quantity in each chamber4pcs
    ExhaustTwo, Three or Four

    3. Working Procedure of Stenter Machine

    open-width fabric entry→ spreading→infrared centering→padder→ weft straightener →overfeed→uncurling→infrared detect→ pinning→stentering→air cooling→depinning→fabric exit→plaiting/winding


    4. Machine Advantages:

    1) Highest drying performance and process control matching any type of fabric due to the technically mature and efficient flow air circulation system.
    2) Very homogeneous air flow and temperature distribution due to alternately arranged thermo zones (every 1.5m).
    3) Very low specific energy consumption.
    4) Extremely robust chains, chain rails, pin bar carriers and clips, needing only little maintenance
    5) Exactly reproducible finishing results because of a complete automation and recipe administration in the line
    6) Available types of heating: Gas direct, gas indirect, thermal oil, steam, electricity and combinations.

    7) Optimum straightening results due to an integrated straightener with shortest possible fabric path to the pinning-on point, available as option.
