    Thermal Oil Heated Fabric Finishing Machine , Automatic Door Textile Finishing Equipment

    Ask Lasest Price
    Brand Name : VIROCK
    Model Number : VK-NM
    Certification : ISO9001
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T, D/A
    Supply Ability : 4 sets per month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Thermal Oil Heated Fabric Finishing Machine , Automatic Door Textile Finishing Equipment

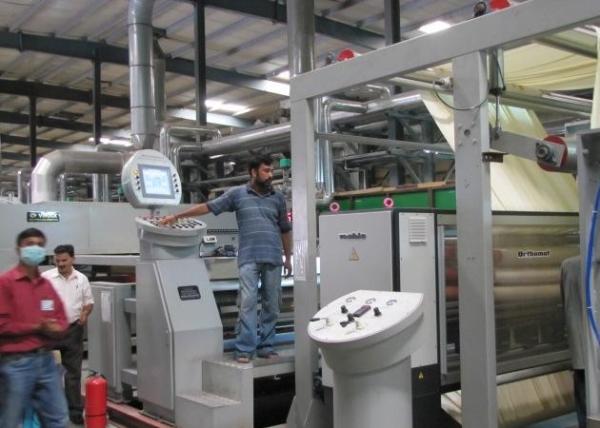

    Thermal oil heated Stenter finishing machine , Automatic door , Double drive


    1. Functions of stenter machine:

    1) The stenter do heat setting for lycra fabric, synthetic and blended fabric.

    2) The stenter used to control the width of the fabric.

    3) The stenter is used to control the GSM of the fabric.

    4) The stentering process is to dry textile.

    5) The stenter process is trying to control the shrinkage property of the fabric.


    2.The machine features:

    • Pins are Monforts type, non-lubrication chain. VIROCK brand.
    • Two-bowl Finishing Padder.
    • Rubber hardness 85 shore and 10-ton pressure, Chemical trough for finish application and draining system by pneumatically jacks.

    3. Process:

    Open width entry --- Fabric positioning device ----Infrared center guider ---- Padder --- Tension applicator ---- Infrared center guider ---- Expanding roller (flat-wired type) ---- Lower overfeeding screw expending ---Upper overfeeding --- Edge detecting & four-finger uncurler device--- Pinning-on ---- Chambers for heat setting ---Air cooling --- Pinning-off ---- End section --- Plaiting & batching.


    4. Main technical data:


    Fabric width1200mm-3600mm
    Roller width1400mm-3800mm
    Chamber door thickness150mm
    Padder typeSlant /vertical padder
    Main driveSingle drive (22Kw)/Double drive (11Kw x 2)
    Chamber quantityAs customer required
    Guide roller diameter125mm / 150mm
    Heating mediaThermal oil/Natural gas/Steam/Electricity or any two combined
    Entry rail typeHorizontal rail
    Entry rail length3m/6m
    Exhaust fan No.Optional
