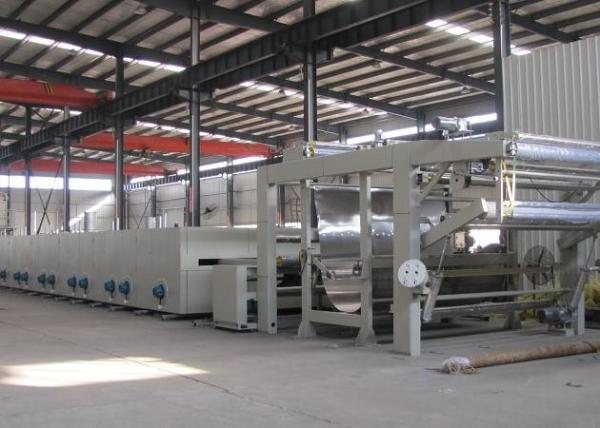

    Advanced Woven Fabric Finishing Machine , Stenter Textile Machine 15KW Padder Motor

    Advanced woven fabric stenter Machine , User - friendly design , good insulation


    1. Main technical data:

    Fabric width1200mm-3600mm
    Roller width1400mm-3800mm
    Padder mangleFinishing/Dyeing paddle
    Padder roller quantityTwo, Three
    Padder roller dia400mm
    Chamber quantity2-15 pcs
    Guide roller diameter125mm/150mm
    Heating mediaThermal oil/Natural gas/Steam/Electricity or any two combined
    Pinning motor0.75 Kw
    Blower motor quantity in each chamber4pcs
    ExhaustTwo, Three or Four

    2. Working Procedure of Stenter Machine

    open-width fabric entry→ spreading→infrared centering→padder→ weft straightener →overfeed→uncurling→infrared detect→ pinning→stentering→air cooling→depinning→fabric exit→plaiting/winding


    3. Stenter features:

    1) ENERGY SAVING

    Special insulation panelling of high density material for low heat radiation, 150 mm thick insulation panels.

    Thermal Insulation
    High Density insulation of 150 mm thickness for low heat radiation Ensuring proper sealing at all the chambers accesses, at entry and exits.

    BENEFITS

    High productivity.Easy maintenance.Optimum utilization of energy.Very low radiation loss.

    WIDTH ADJUSTMENT

    2) Non lubricated width spindle driven by separate motor.

    BENEFITS

    Any desired width can be adjusted automatically for entire machine from control desk.Digital width indication at the inlet, outlet area and mechanical width counter meter at each width spindle.Digital width indication at the inlet and outlet area .

    3) INTEGRATED EXHAUST SYSTEM

    Integral and External exhaust duct is supplied as per requirementIntegral duct minimises oil condensation chances and easy to clean; space saving constructionControl on hot air exhaust losses is possibleChamber wise exhaust air control is possible due to separate manually operated damper arrangementInverter driven direct drive exhaust fan is provided for speed control as per process requirement
