    Open Width Stenter Machine Textile Finishing Machine , Fabric Stenter Machine

    Ask Lasest Price
    Brand Name : VIROCK
    Certification : ISO9001
    Price : NEGOTIABLE
    Payment Terms : T/T
    Supply Ability : as required
    Delivery Time : 90 days
    • Product Details
    • Company Profile

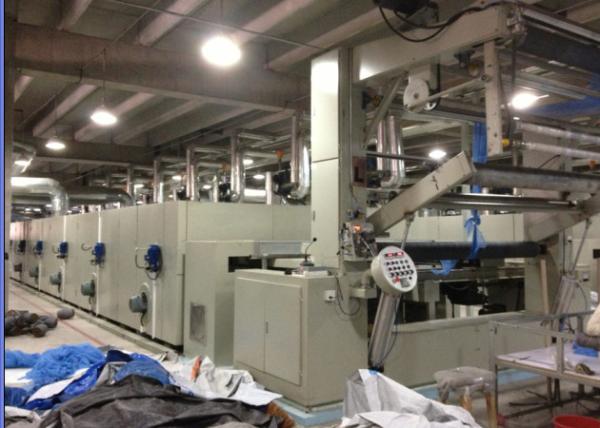

    Open Width Stenter Machine Textile Finishing Machine , Fabric Stenter Machine

    Open width textile stenter Machine , easy operation , good heat - retaining


    1. Description:

    Stenters are the heart of textile finishing.

    Stenter is used for preventing distortion, obtaining dimensional reliability, wrinkle resistance and temperature resistance.


    2.Technical specifications:

    Roller width:3600mmWorking width:3400mm
    Heat source:nature gasWidth adjustment range:700-3400mm
    Chambers No.6Temperature of chamber:100-220℃
    Fabric held by:clip/pin/combinedAir pressure:above 0.5mpa
    Overfeed range:-10% to 30%Installed power:Approx 120Kw

    3. Stenter features:
    1) Hot Air Stenter Air Circulation
    Unique Air Circulation System allows to control the process & fine tuning of process parameter providing best conditions for Heat setting, finishing, Drying, curing & coating application etc.
    ADVANTAGES

    The flow Air Circulation System, Separately controlled air flow for top & bottom nozzles.Higher efficiency Blower fan motors with lower energy consumption.Reproducible fabric results at any time.Stepless exact speed control of Chamber fan due to inverter driven motors.Ideal for delicate materials such as silk, knitted & pile fabrics.


    2) CHAIN DESIGN

    Special long term lubricated roller bearing chain ( required lubrication once a year or even later) with fully encapsulated ball bearing ,ensuring highest possible stretch , high operational speed with min. energy consumption available as pin chain, clip chain or combined pin & clip chain design.

    BENEFITS

    Running at higher speed (150mpm).Higher fabric stretch is possible.Low maintenance.Oil cups totally eliminated.Free from oil spillage.No possibility of staining of the fabric.No dropping , hence neat operations and clean surroundings.
