Hot Air Circulating 3600mm Textile Stenter Machine

    Buy cheap Hot Air Circulating 3600mm Textile Stenter Machine from wholesalers

    Buy cheap Hot Air Circulating 3600mm Textile Stenter Machine from wholesalers
    • Buy cheap Hot Air Circulating 3600mm Textile Stenter Machine from wholesalers

    Hot Air Circulating 3600mm Textile Stenter Machine

    Ask Lasest Price
    Brand Name : VIROCK
    Model Number : VK- NB/NM
    Certification : ISO9001
    Price : NEGOTIABLE
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 4 sets per month
    Delivery Time : in 90 days
    • Product Details
    • Company Profile

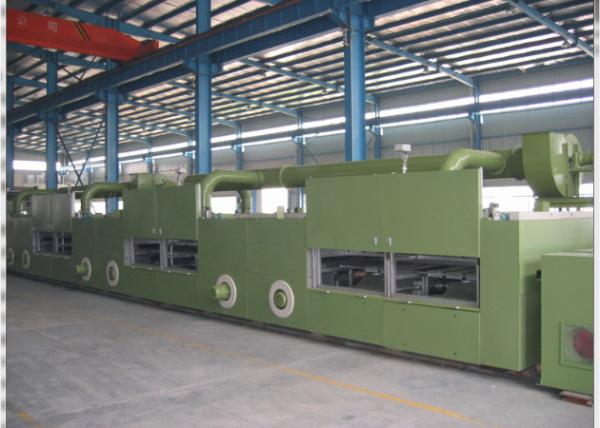

    Hot Air Circulating 3600mm Textile Stenter Machine

    Custom - Tailr Textile Stenter Machine Stronge Rail For Heavy Stretch Even Temp


    1. The Application of our machine in special fields like in medical field & Auto industry:



    In medical field

    The main suitable productsOur advantage:
    1. Bandage
    Perfect edge uncurling, it can keep the bandage elasticity, auto high production
    1. Gauze
    Perfect edge pinning and cutting, high production.
    1. Polypropylene mesh
    High heat setting, keep the desired mesh shape

    In auto industry

    1. Air bag

    Perfect edge uncurling, it can keep the bandage elasticity, auto high production


    2. Automotive Interior

    Perfect overfeeding, edge pinning, high production.


    3. Car seat

    High overfeeding, Strong streching, Even temperature, keep the desired mesh shape and elasticity.



    2. Main technical index

    Brand NameVIROCK
    ModelVK-NB/NM
    OriginChina
    ManufactureCustom-tailored
    Main Matching Fabricopen width fabric (70~350g/m²) made
    of cotton, cotton/polyester,wool,synthtic fiber and
    other blended fibers
    Heat sourcenatural gas/circulating conduction oil/steam/electricity/combined
    Stentering typehot air circulating
    Holding typepin/clip/combined
    Chain typeoil-free lubricated/ lubricated
    Rail typecarbon steel+polymer wearing strip
    Working typehorizontal/vertical return chain
    Working width800-3600mm
    Working speed5-100m/min
    Chamber Nos1-12
    Chamber widthcustomized
    Insulating board thickness150mm
    Temperature of chamber100~230ºC
    Pinning & brush overfeed ratio-30%~80%
    Temp.& width adjustment typeseparately adjust on each chamber
    Capacity of machine61.5kw+22.75kw*chamber*Nos
    Standard machine power supply380V/3P/50HZ;220V/3P
    Control power supply220V/24V
    Steam specification of steam box3-6kg/cm²
    Steam comsuption of steam box100-150kg/h
    Compressed air0.35-0.6MPa
    Total weight14T+5.8T/chamber*Nos

    3. Our machine advantage in this industry:


    1) Highest drying performance and process controlled under even temperature.

    2) Extremely strong chains, rails, and pin system to achieve strong streching.

    3) Exactly reproducible finishing results because of a complete automation and recipe administration in the line

    4) The perfect control of the fabric tension.

    5) The individual width adjustment.


    4. Our service advantages:

    1. We supply some quick-wear parts freely together with the machine, which can help customer solve some urgent problem sometimes.
    2. We supply one year guarantee, the broken parts except the quick-wear ones can be replaced freely during the guarantee period.
    3. We can supply good after-sale service.
    4. The installation time of our machine is about 15 days, which is twice or even three times shorter than that of other companies in the same industry. As the installation time is greatly shortened, it not only helps customers save the high cost of installation fee, but allow them to put into production as soon as possible which bring the benefits of product production. In general, it brings customers a high-quality experience different from other manufacturers.
