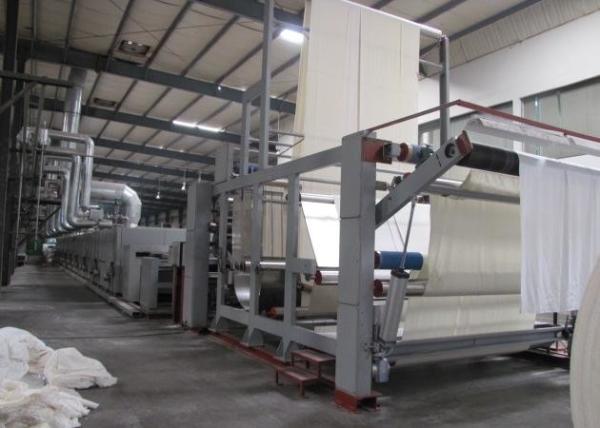

Mosquito Net Fabric Textile Stenter Machine , Low Tension Hot Air Stenter Machine

1. Technical Flow:

Plaint Entry --- Infrared center guider ---- 2-Roller Padder -- Infrared center guider --- Photoelectric Weft Strangtener – Overfeeding -- Edge Spreader, Infrared Edge Sensor -- Pin or Clip or Combied Pin-Clip -- Stentering Drying Chambers – Air-Jet Cooling -- -- Swing Outlet.

2. Stenter Application:

This machine is used for stretching, drying and setting the cotton, polyester,and man-made fabric.

Norminal width mm 1800~3600

working width mm 500~3400

Fabric holding pinning, clipping or Combined type

heating source Thermal Oil, Gas, Steam or Electricity

Fabric grammage g 150~500

Temperature of chamber ℃ 90~230

NO. of chamber 2~15

3. Standard Features:

A- Overfeed Pinning Systems:
Proper pinning is the key to successful overfeed and yield control. Available options:

B- DRIVE The machine running with D.C. drive, main drive motor of padding mangle and Stenter are teps D.C. motors reduction gear box is coupled with the main motor of Stenter machine.

C- FINISHING Machine will be finished with red oxide putty & primmer paint and finally with 3 coats of industrial paint. Optionally finished with powder coating process.

D- IMPORTANT NOTE The length & width of the Stenter machine, no. of the chambers, HP. Of D.C. / A.C. motors varies according the buyers requirements operating manual wiring diagram of the control panel & foundation plan will be provided with the machine.
